Super long Pcb Prototype Printed circuit board manufacturer

Views : 44
Author : meidear PCB
Update time : 2021-10-20 10:10:04
Shenzhen Meidear Co., Limited is mainly engaged in PCB circuit board, PCB board, PCB Prototype, LED circuit board, LED Strip PCB and Flexible PCB circuit board manufacturers.
Professional manufacturer of aluminum substrate, copper substrate, FR-4 board, CEM-1, CEM-3 and other circuit boards.
otherwise depend on the self-control part of customer's demand,
Welcome enquiry, please email list for unit or inquire!
Email:  mkt@me-pcb.com


Make Ultra PCB boards that others can't handle! Rest your's heart.

Super-long  ultra-long  Long Size pcb
ultra-thinkness
Of course, it's more reassuring to give us the simple circuit board.

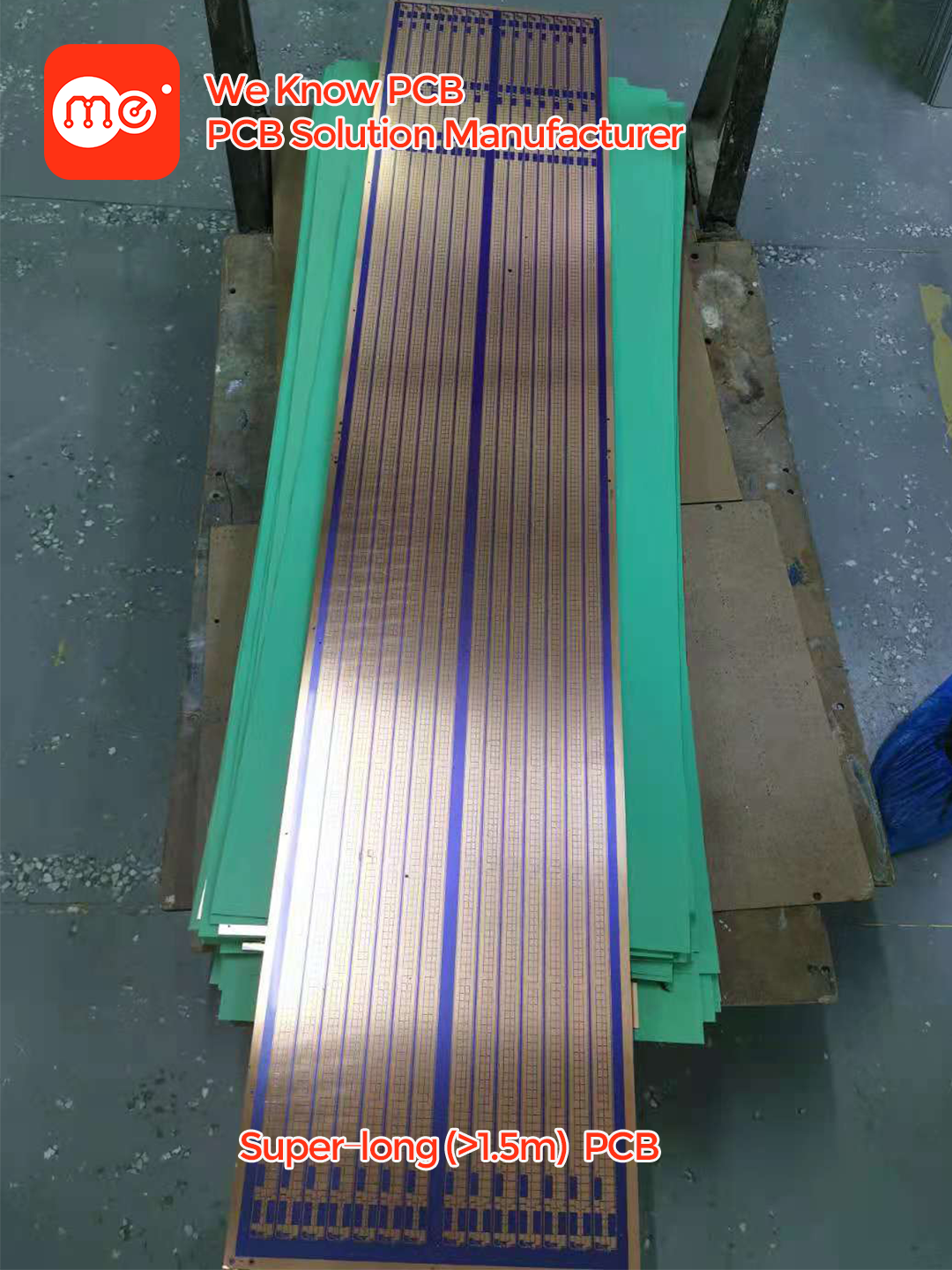

Super-long PCB Route making with dry Film

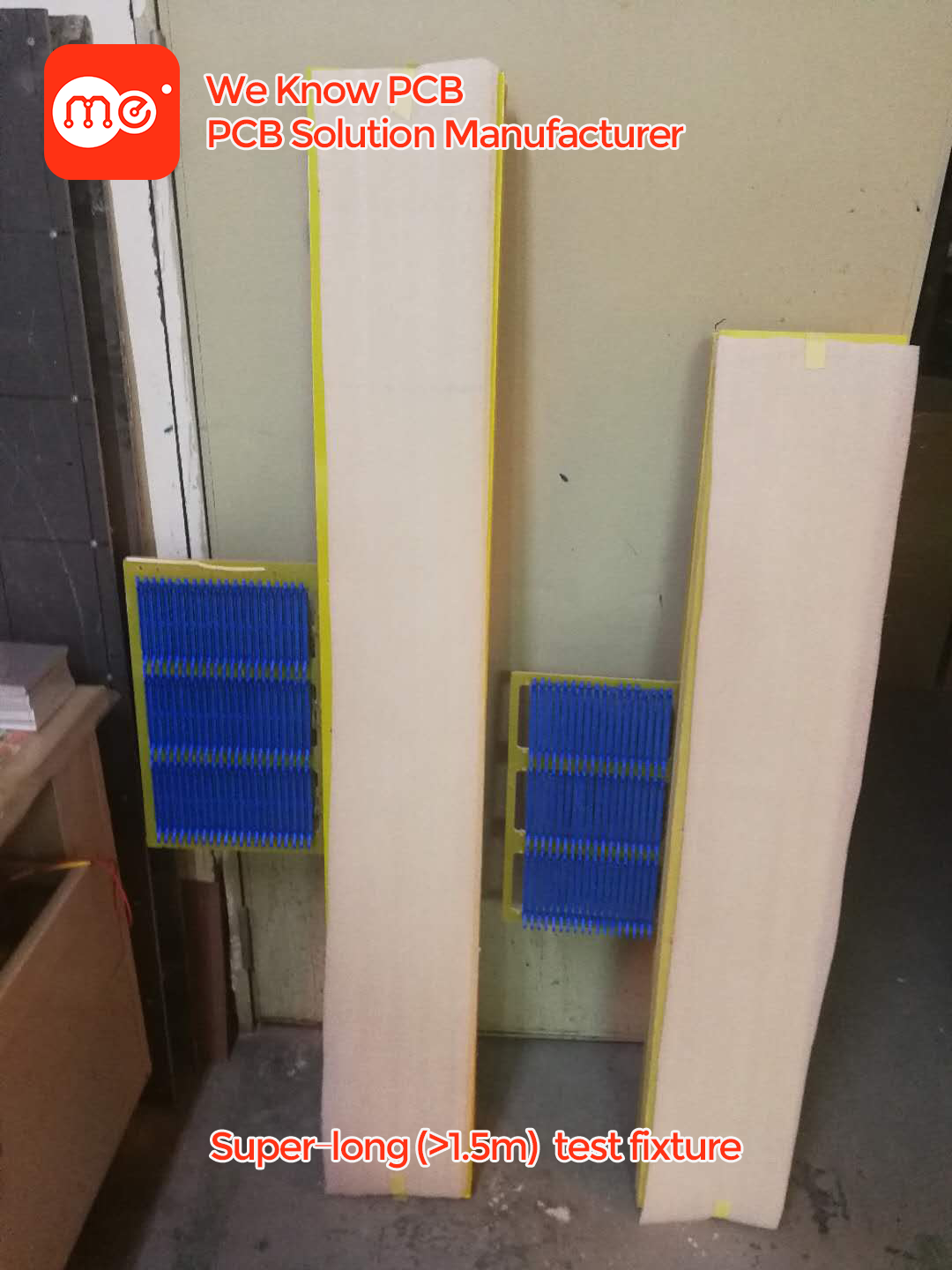

Super-long >1.5m  PCB E-test Fixture

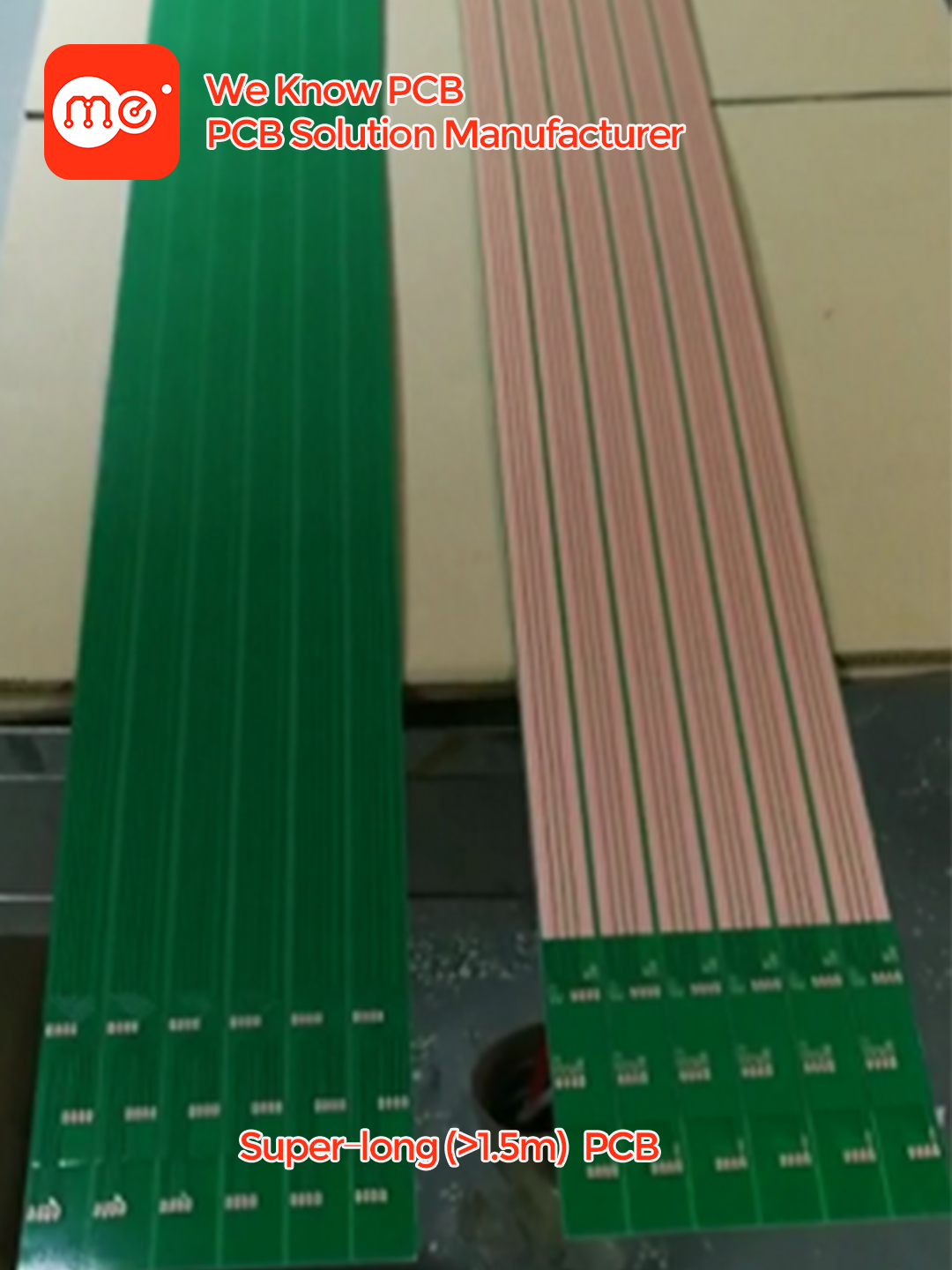

Super-long >1.5m  1530mm PCB Manufacturer

1.6mm FR4 CEM-3
copper thickness: 2Oz, Green SolderMask and white legend,
hole copper: 25um, surface treatment: OSP

Sample/ prototype Flying Probe test,
Mass production with test fixture test.
